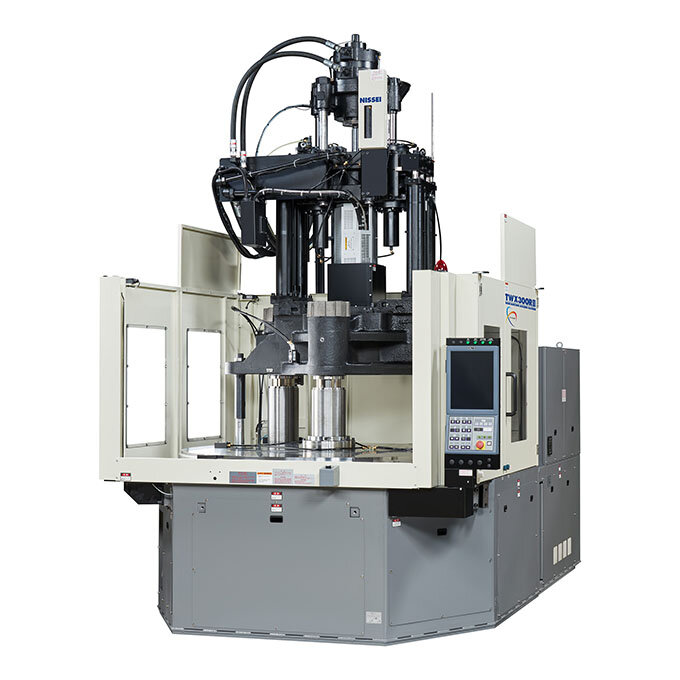

TWX-RⅢ series
Products Information
User-Friendly Low-Floor Type
TWX-RⅢ Series was developed from the best-selling hybrid type vertical injection molding machine “TNXSeries,” which was widely used in many insert molding applications. TWX-RⅢ Series is equipped with a new compound type clamping mechanism and offers super low-floor structure. It provides high level of safety and refined usability while reducing the costs for ancillary equipment and hydraulic oil required for running the large vertical molding machines.
-
- Clamping Force
- 220tf～ 300tf
-
- Drive
-
Hybrid
Features
-

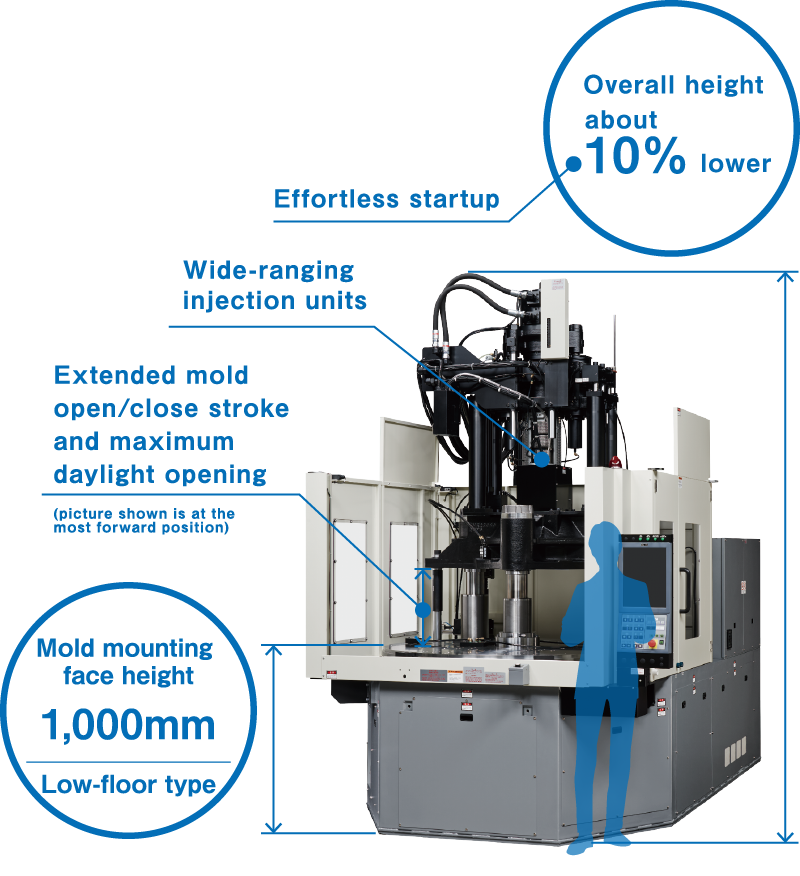

Super Low-Floor Type
In spite of being a 220t-class vertical injection molding machine, the height of the mold mounting face is 1,000mm, offering significantly lower height than its predecessors. It makes mold installation/setup, insert, and product takeout easier than ever before, significantly improving its usability and operability. Its optimized bed structure permits flexible robot layout. It also offers wider mold open/close stroke and maximum daylight opening, accommodating for the trends to use more complex and larger mold.
-

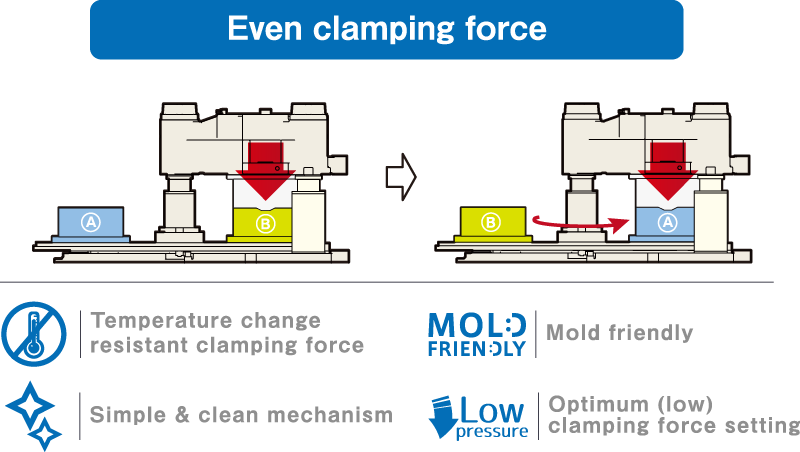

Hybrid X-Pump Type
TWX-RⅢ Series is equipped with a direct-pressure type clamping mechanism that constantly transmits clamping force evenly to the mold according to the setting, even though it is a turntable type that mounts two molds on the lower die. Its performance is not affected by the temperature change in the mold or clamping unit. It is easy to set optimal (low) clamping force that is gentle to the mold and machine. Its simple and clean mechanism maintains the mechanical precisions for a long time.
-

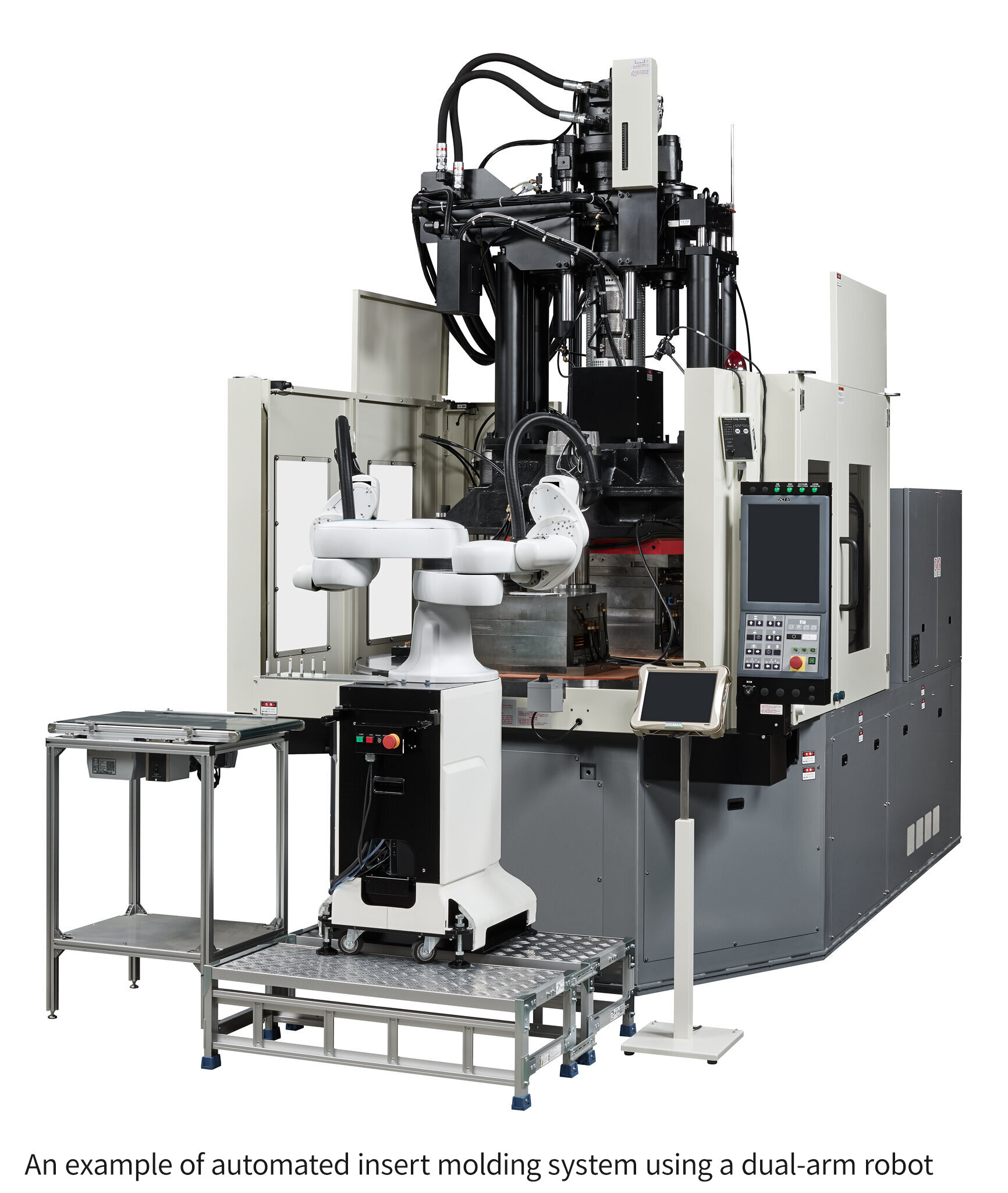

Automated Insert Molding Systems
NISSEI can propose a variety of automated insert molding system configurations that maximize the advantages of the vertical rotary injection molding machines. Takeout robot, articulated robot, and dual-arm robot can be adopted into the automated systems with the TWX-RⅢ machines according to the products and molding methods.
